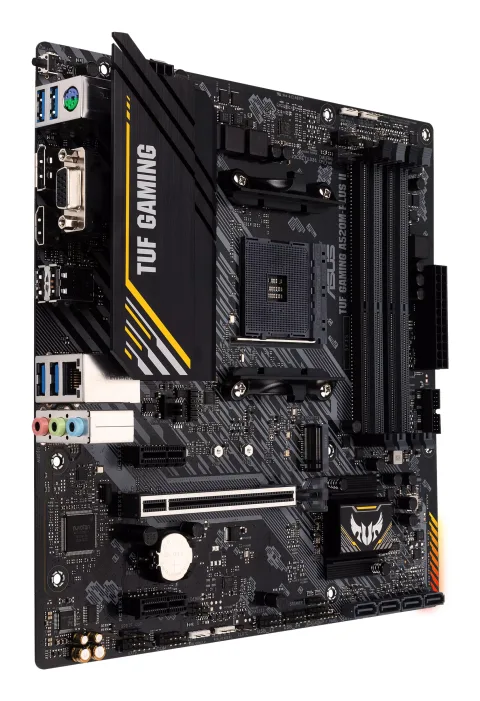

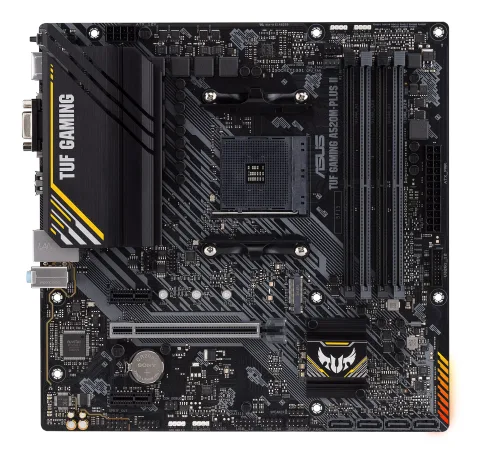

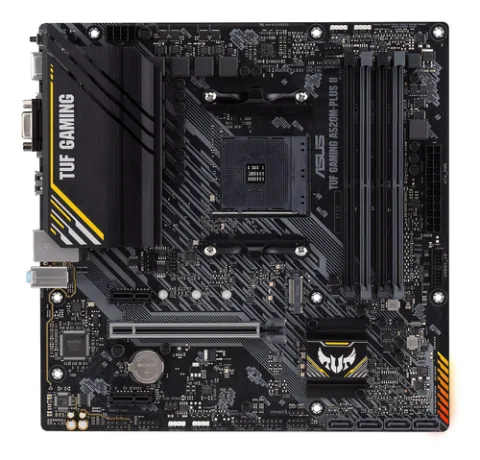

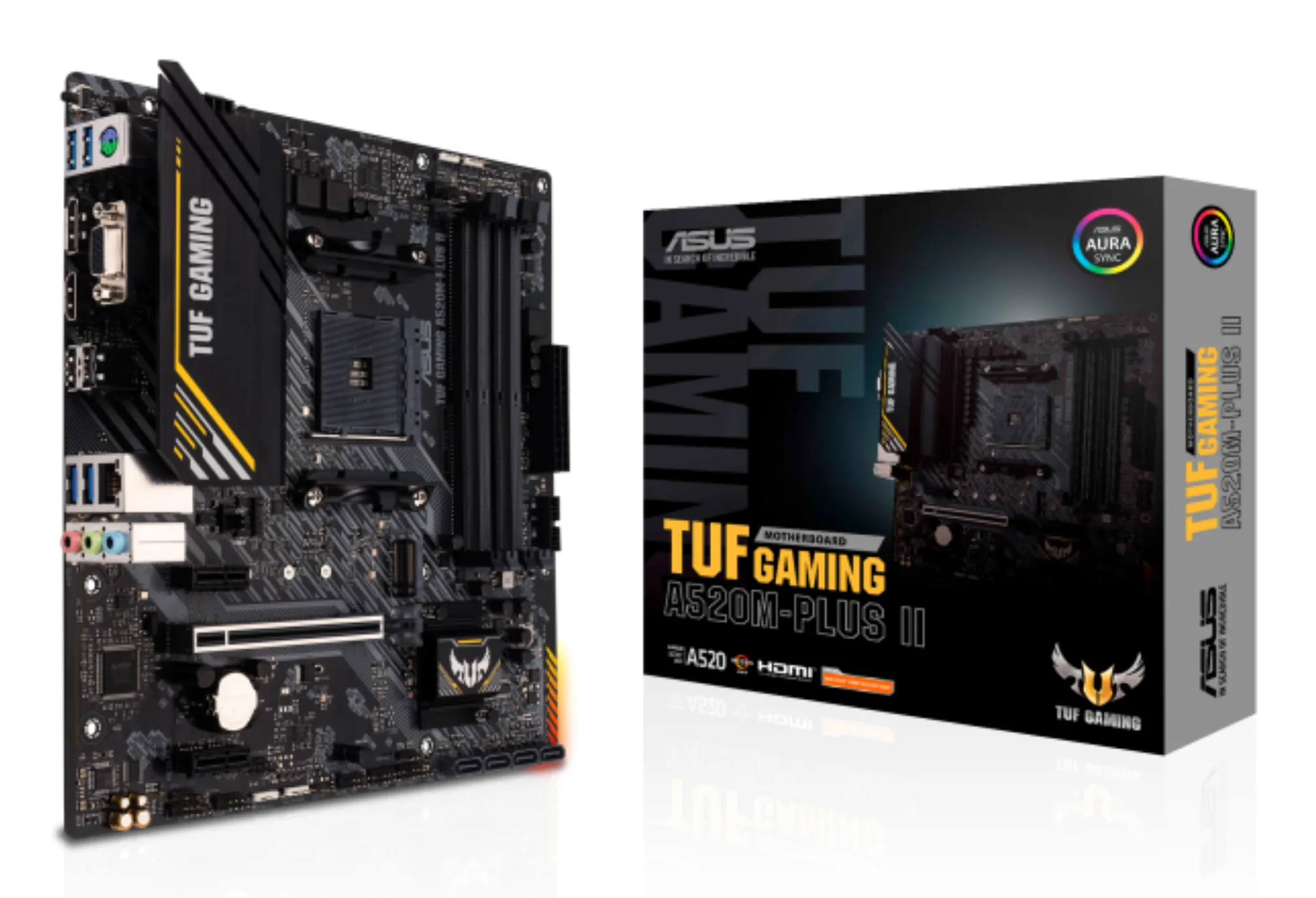

TUF GAMING A520M-PLUS II
ASUS computer components with verified catalog identifiers, images, and specifications.
- Processor socket
- Socket AM4
- Compatible processor series
- AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
- Supported storage drive interfaces
- M.2, PCI Express 3.0, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Supported processor sockets
- Socket AM4
- Maximum resolution
- 3840 x 2160 pixels
Merchant offers
Prices and delivery
Overview
TUF GAMING A520M-PLUS II price comparison
TUF GAMING A520M-PLUS II: ASUS, computer components. PriceInfo combines product identifiers, normalized specifications and merchant-offer data for EU countries.
Normalized specifications on this page: 61. Visible facts include: Memory: 128 GB, Weight: 900 g.
Compare the exact identifier first, then the merchant, seller country, displayed price, delivery and availability.
Buying guide
What to compare before buying
Before opening a store, confirm that its offer matches the GTIN or MPN and the specifications shown on this page.
Customer reviews
Approved buyer feedback
Be the first to share a useful experience with this exact product. New reviews are published only after moderation.
Share your experience
FAQ
Questions about TUF GAMING A520M-PLUS II
Which exact product is TUF GAMING A520M-PLUS II?
Match the exact product using: GTIN 4711081154457, MPN 90MB17G0-M0EAY0.
What data is available for TUF GAMING A520M-PLUS II?
Normalized specifications on this page: 61. Visible facts include: Memory: 128 GB, Weight: 900 g.
Can I compare TUF GAMING A520M-PLUS II across countries?
Yes. Open the all-country view to compare verified merchant offers while keeping the same GTIN or MPN.
Why can a product page have no price?
A price appears when a store provides a recent offer for this exact product. Until then, the page remains a factual product record.
Explore
More ways to compare TUF GAMING A520M-PLUS II
Specifications
Technical data
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit
- Clear CMOS jumper
- Yes
Features
- Audio chip
- Realtek ALC887 / Realtek ALC897
- Motherboard chipset
- AMD A520
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- AMD
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- USB 2.0 connectors
- 2
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Number of COM connectors
- Yes
- CPU fan connector
- Yes
- TPM connector
- Yes
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC
- Supported memory clock speeds
- 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz
- Maximum internal memory
- 128 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Wake-on-LAN ready
- Yes
- Wi-Fi
- No
- Ethernet interface type
- Gigabit Ethernet
- Top Wi-Fi standard
- Not available
Packaging content
- Cables included
- SATA
- Drivers included
- Yes
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- HDMI version
- 2.1
- Microphone in
- Yes
- EPS power connector (8-pin)
- Yes
- USB 2.0 ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- DisplayPort version
- 1.2
- USB connector type
- USB Type-A
Printing
- Maximum resolution
- 3840 x 2160 pixels
Processor
- Processor socket
- Socket AM4
- Compatible processor series
- AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
- Supported processor sockets
- Socket AM4
- Processor manufacturer
- AMD
Rear panel I/O ports
- PS/2 ports quantity
- 1
Software
- Windows operating systems supported
- Windows 10 x64
Storage
- Supported storage drive interfaces
- M.2, PCI Express 3.0, SATA III
- RAID support
- Yes
- RAID levels
- 0, 1, 10
- Number of storage drives supported
- 5
- Supported storage drive types
- HDD & SSD
Weight & dimensions
- Width
- 244 mm
- Depth
- 244 mm
- Height
- 67 mm
- Weight
- 900 g
