ATEN CE840-AT-G
USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K 100m)
- Connectivity technology
- Wired
- Type
- Transmitter & receiver
- Material
- Metal
- Supported resolutions
- 4096 x 2160 3840 x 2160
Merchant offers
Prices and delivery
Overview
ATEN CE840-AT-G price comparison

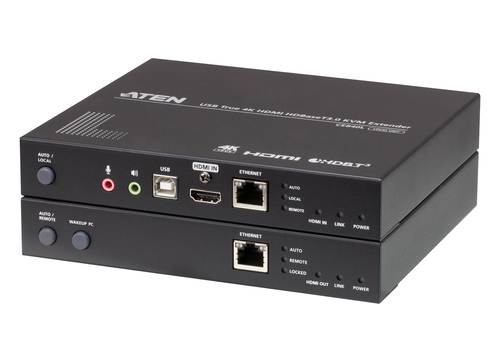

Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above. Installation is made easy, neat, and cost-efficient with no compromises on high quality distribution of AV content. The CE840 allows for dual console operation via the two USB ports for USB keyboard and mouse connection and the pushbuttons for switching USB control console between the remote and local end. LEDs on the front panel help indicate which USB control mode that is currently on. Moreover, each unit contains an HDMI output port for local control and the other two USB 2.0 ports for USB peripheral connection. Consequently, operators can acquire data and manage equipment in one location, even from a distance.The CE840 showcases excellent AV performance with no compression and zero latency. In addition to the support for HDR 10+, the extender is also capable of delivering video signals at up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m. The extender also supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.CE840 is an ideal solution for medium to large size applications that require uncompressed AV and control signal extension and remote access and control, including factories, warehouses, data centers, as well as medical and healthcare applications where precise visualization and accurate representation are essential.
Normalized specifications on this page: 37. Visible facts include: Weight: 3.54 kg.
Compare the exact identifier first, then the merchant, seller country, displayed price, delivery and availability.
Buying guide
What to compare before buying
Before opening a store, confirm that its offer matches the GTIN or MPN and the specifications shown on this page.
Customer reviews
Approved buyer feedback
Be the first to share a useful experience with this exact product. New reviews are published only after moderation.
Share your experience
FAQ
Questions about ATEN CE840-AT-G
Which exact product is ATEN CE840-AT-G?
Match the exact product using: GTIN 4710469348792, MPN CE840-AT-G.
What data is available for ATEN CE840-AT-G?
Normalized specifications on this page: 37. Visible facts include: Weight: 3.54 kg.
Can I compare ATEN CE840-AT-G across countries?
Yes. Open the all-country view to compare verified merchant offers while keeping the same GTIN or MPN.
Why can a product page have no price?
A price appears when a store provides a recent offer for this exact product. Until then, the page remains a factual product record.
Explore
More ways to compare ATEN CE840-AT-G
Specifications
Technical data
Design
- Material
- Metal
- Product colour
- Black
Features
- Country of origin
- Taiwan
Graphics
- HDCP
- Yes
Logistics data
- Master (outer) case gross weight
- 3.54 kg
- Master (outer) case width
- 247 mm
- Master (outer) case length
- 556 mm
- Master (outer) case height
- 153 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
Performance
- Type
- Transmitter & receiver
- Supported resolutions
- 4096 x 2160 3840 x 2160
- Maximum transfer distance
- 100 m
- Maximum digital resolution
- 4096 x 2160 pixels
- HDCP version
- 2.3
Ports & interfaces
- Connectivity technology
- Wired
- DC-in jack
- Yes
- USB port type
- USB Type-B
Power
- Power consumption (transmitter) (max)
- 7.36 W
- Power consumption (receiver) (max)
- 7.37 W
Odbiornik
- Receiver local video port type
- HDMI
Nadajnik
- Transmitter video port type
- HDMI
- Transmitter local video port
- Yes
- Transmitter local video port type
- HDMI
Weight & dimensions
- Transmitter width
- 15.6 cm
- Transmitter depth
- 17.8 cm
- Transmitter height
- 2.88 cm
- Package width
- 131 mm
- Package depth
- 540 mm
- Package height
- 233 mm
- Receiver width
- 15.6 cm
- Package weight
- 2.98 kg
- Transmitter weight
- 820 g
- Receiver depth
- 17.8 cm
- Receiver height
- 2.88 cm
- Receiver weight
- 810 g
