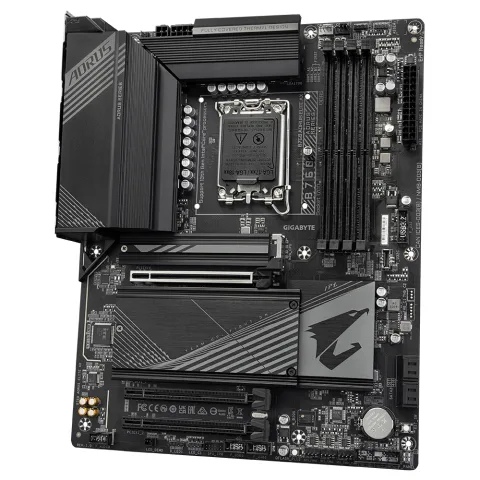

GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen
GIGABYTE computer components with verified catalog identifiers, images, and specifications.
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported storage drive interfaces
- M.2, SATA III
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Supported processor sockets
- LGA 1700
- Maximum resolution
- 4096 x 2304 pixels
Merchant offers
Prices and delivery
Overview
GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen price comparison
GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen: GIGABYTE, computer components. PriceInfo combines product identifiers, normalized specifications and merchant-offer data for EU countries.
Normalized specifications on this page: 86. Visible facts include: Memory: 192 GB, Weight: 3 g.
Compare the exact identifier first, then the merchant, seller country, displayed price, delivery and availability.
Buying guide
What to compare before buying
Before opening a store, confirm that its offer matches the GTIN or MPN and the specifications shown on this page.
Customer reviews
Approved buyer feedback
Be the first to share a useful experience with this exact product. New reviews are published only after moderation.
Share your experience
FAQ
Questions about GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen
Which exact product is GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen?
Match the exact product using: GTIN 4719331851750, MPN B760 AORUS ELITE AX.
What data is available for GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen?
Normalized specifications on this page: 86. Visible facts include: Memory: 192 GB, Weight: 3 g.
Can I compare GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen across countries?
Yes. Open the all-country view to compare verified merchant offers while keeping the same GTIN or MPN.
Why can a product page have no price?
A price appears when a store provides a recent offer for this exact product. Until then, the page remains a factual product record.
Explore
More ways to compare GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen
Specifications
Technical data
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 5
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Design
- Product colour
- Black
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
Features
- Country of origin
- China
- Audio chip
- Realtek ALC897
- Motherboard chipset
- Intel B760
- Audio output channels
- 7.1 channels
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
Graphics
- Parallel processing technology support
- Not supported
- Discrete graphics support
- Yes
- HDCP
- Yes
Internal I/O
- USB 2.0 connectors
- 2
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- TPM connector
- Yes
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & Non-ECC
- Supported memory clock speeds
- 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
- Supported memory clock speed (max)
- 7600 MHz
- Maximum internal memory
- 192 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Wi-Fi
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- WLAN controller model
- Realtek RTL8852CE
Packaging content
- Cables included
- SATA
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Microphone in
- Yes
- EPS power connector (8-pin)
- Yes
- Peripheral (Molex) power connectors (4-pin)
- 1
- USB 2.0 ports quantity
- 4
- HDMI ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- USB connector type
- USB Type-A, USB Type-C
Power
- Power source type
- ATX
Printing
- Maximum resolution
- 4096 x 2304 pixels
Processor
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- Processor manufacturer
- Intel
Rear panel I/O ports
- S/PDIF out port
- Yes
- WiFi-AP antenna jack
- 2
Software
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
Storage
- Supported storage drive interfaces
- M.2, SATA III
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
Storage controllers
- Number of HDDs supported
- 4
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
- Height
- 35 mm
- Package width
- 335 mm
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 2.16 kg
