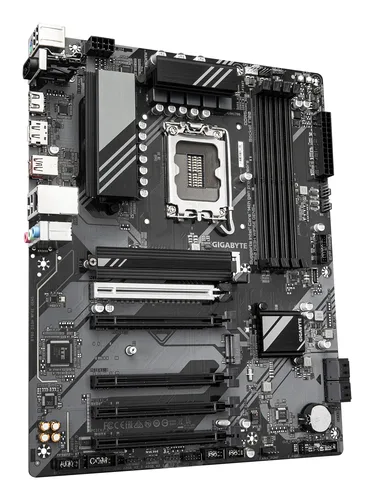

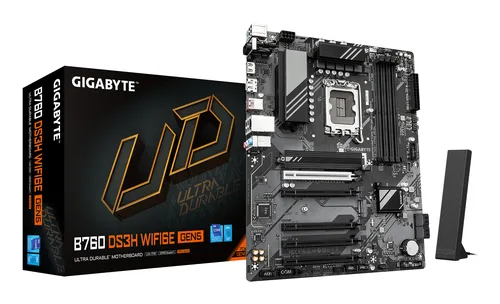

GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
- Supported storage drive interfaces
- M.2, PCI Express 4.0, SATA III
- Supported processor sockets
- LGA 1700
- Maximum resolution
- 4096 x 2304 pixels
- Supported memory types
- DDR5-SDRAM
Merchant offers
Prices and delivery
Overview
GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard price comparison
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Normalized specifications on this page: 89. Visible facts include: Memory: 256 GB, Weight: 1.31 kg.
Compare the exact identifier first, then the merchant, seller country, displayed price, delivery and availability.
Buying guide
What to compare before buying
Before opening a store, confirm that its offer matches the GTIN or MPN and the specifications shown on this page.
Customer reviews
Approved buyer feedback
Be the first to share a useful experience with this exact product. New reviews are published only after moderation.
Share your experience
FAQ
Questions about GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard
Which exact product is GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard?
Match the exact product using: GTIN 4719331872939, MPN B760 DS3H WF6E GEN5.
What data is available for GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard?
Normalized specifications on this page: 89. Visible facts include: Memory: 256 GB, Weight: 1.31 kg.
Can I compare GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard across countries?
Yes. Open the all-country view to compare verified merchant offers while keeping the same GTIN or MPN.
Why can a product page have no price?
A price appears when a store provides a recent offer for this exact product. Until then, the page remains a factual product record.
Explore
More ways to compare GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard
Specifications
Technical data
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit
- ACPI version
- 5
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Design
- Product colour
- Dark brown
- Cooling type
- Passive
Expansion slots
- 1st M.2 largest key size
- 22110
- 1st M.2 highest PCI Express generation
- 4
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4
Features
- Audio chip
- Realtek ALC897
- Motherboard chipset
- Intel B760 Express
- Audio output channels
- 7.1 channels
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
Graphics
- Parallel processing technology support
- Not supported
- HDCP
- Yes
- DirectX version
- 12
Internal I/O
- USB 2.0 connectors
- 2
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- TPM connector
- Yes
- 12V power connector
- Yes
- RGB LED pin header
- Yes
- Number of water pump connectors
- 2
- Number of RGB LED pin headers
- 4
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & Non-ECC
- Supported memory clock speeds
- 5600,5200,4800,4400 MHz
- Supported memory clock speed (max)
- 5600 MHz
- Maximum internal memory
- 256 GB
- Unbuffered memory
- Yes
- Maximum internal memory per slot
- 64 GB
Network
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8111H
- Wi-Fi
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- WLAN controller model
- Intel Wi-Fi 6E AX210
Packaging content
- Screws included
- Yes
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
Ports & interfaces
- HDMI version
- 2.1
- Microphone in
- Yes
- EPS power connector (8-pin)
- Yes
- USB 2.0 ports quantity
- 4
- DisplayPort version
- 1.2
Power
- Power source type
- ATX
Printing
- Maximum resolution
- 4096 x 2304 pixels
Processor
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- Processor manufacturer
- Intel
Rear panel I/O ports
- Line-in
- Yes
- WiFi-AP antenna jack
- 2
Software
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
Storage
- Supported storage drive interfaces
- M.2, PCI Express 4.0, SATA III
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
Storage controllers
- Number of HDDs supported
- 4
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
- Height
- 35 mm
- Weight
- 1.31 kg
- Package width
- 335 mm
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 1.55 kg
